Logic Builder

Logic Builder provides a comprehensive scripting environment for creating, managing, and validating business logic throughout EPMware. Scripts enable custom validations, data transformations, workflow automation, and system integrations across all modules.

Logic Builder Overview
Logic Builder interface showing script grid and editor

Overview

Logic Builder serves as the central automation engine for EPMware, enabling:

  • Validation Scripts - Business rule enforcement and data quality checks
  • Derivation Scripts - Dynamic property value calculations
  • Workflow Scripts - Custom task automation and processing
  • Integration Scripts - External system connectivity
  • Pre/Post Scripts - Deployment and export processing

Scripts integrate seamlessly with all EPMware modules to extend functionality and enforce business requirements.

📝 Script Creation

Create and configure scripts for automation

Create Scripts →

✏️ Editor

Edit and validate script code

Use Editor →

🔧 Script Types

Understand different script categories

View Types →

📚 API Reference

Available functions and objects

View API →

Script Management

Script Grid

The main Logic Builder grid displays all scripts with management options:

Logic Builder Grid
Logic Builder grid showing script list

Column Description Actions
Enabled Script active status Check/uncheck to toggle
Script Name Unique identifier Click to load in editor
Description Script purpose Documentation
Type Script category Determines usage
DB Function Database function name For SQL scripts
Upload File upload Import script file
Actions Row operations Edit, delete
  • Search - Find scripts by name or description
  • Filter - Show enabled/disabled/all
  • Sort - Order by name, type, or date
  • Page - Navigate through script pages

Creating Scripts

Add New Script

Create Script Dialog
Create Script dialog with configuration options

  1. Click the + icon
  2. Configure script properties:
Field Required Description
Script Name Yes Unique identifier (no spaces)
Description No Script purpose and usage
Script Type Yes Category determining usage
DB Function Name Conditional For database functions
Enabled Yes Active status
  1. Click Save to create script

Script Naming Conventions

Follow these patterns for consistency:

Type Pattern Example
Validation VAL_{MODULE}_{PURPOSE} VAL_HFM_ACCOUNT_CODE
Derivation DER_{PROPERTY}_{LOGIC} DER_FULLNAME_CONCAT
Workflow WF_{STAGE}_{ACTION} WF_REVIEW_NOTIFY
Integration INT_{SYSTEM}_{OPERATION} INT_SAP_EXTRACT
Custom CUST_{FUNCTION} CUST_CALCULATE_RATIO

Upload Script File

Upload Script File
Upload script file dialog

  1. Click upload icon on script row
  2. Browse for script file (.js, .sql, .txt)
  3. Click Upload to import

File Upload

Script files can only be uploaded to existing scripts, not during creation.

Script Types

Validation Scripts

Enforce business rules and data quality:

// Property validation example
function validateAccountCode(context) {
    var accountCode = context.propertyValue;
    var pattern = /^[0-9]{4}-[A-Z]{3}-[0-9]{3}$/;

    if (!pattern.test(accountCode)) {
        return {
            valid: false,
            message: "Account code format must be: 9999-XXX-999"
        };
    }

    // Additional business logic
    if (accountCode.substring(5, 8) === "RES" && !context.isRestricted) {
        return {
            valid: false,
            message: "Restricted codes require special approval"
        };
    }

    return { valid: true };
}

Derivation Scripts

Calculate property values dynamically:

// Derive concatenated description
function deriveFullDescription(context) {
    var entity = context.getMemberProperty("Entity");
    var account = context.getMemberProperty("Account");
    var currency = context.getMemberProperty("Currency");

    if (entity && account) {
        return entity + " - " + account + " (" + currency + ")";
    }

    return null;
}

Workflow Scripts

Custom workflow task processing:

// Custom approval routing
function routeToApprover(context) {
    var amount = context.getRequestProperty("AMOUNT");
    var department = context.getRequestProperty("DEPARTMENT");

    // Determine approver based on amount
    var approverGroup;
    if (amount > 1000000) {
        approverGroup = "EXEC_APPROVERS";
    } else if (amount > 100000) {
        approverGroup = "SENIOR_APPROVERS";
    } else {
        approverGroup = "DEPT_APPROVERS_" + department;
    }

    // Assign to group
    context.assignToGroup(approverGroup);

    // Send notification
    context.sendEmail({
        template: "APPROVAL_REQUIRED",
        group: approverGroup,
        priority: amount > 500000 ? "High" : "Normal"
    });

    return { status: "SUCCESS" };
}

Pre/Post Processing Scripts

Execute before/after deployments or exports:

// Pre-deployment backup
function preDeploymentBackup(context) {
    var timestamp = new Date().toISOString().replace(/:/g, '-');
    var backupName = context.applicationName + "_backup_" + timestamp;

    try {
        // Create metadata backup
        var result = context.executeDBFunction("CREATE_METADATA_BACKUP", {
            appName: context.applicationName,
            backupName: backupName
        });

        // Log backup creation
        context.log("INFO", "Backup created: " + backupName);

        // Validate target system
        if (!context.isTargetAvailable()) {
            throw new Error("Target system not responding");
        }

        return {
            status: "SUCCESS",
            backup: backupName
        };

    } catch (error) {
        context.log("ERROR", "Backup failed: " + error.message);
        return {
            status: "FAILED",
            error: error.message
        };
    }
}

Integration Scripts

Connect with external systems:

// REST API integration
function syncWithExternalSystem(context) {
    var endpoint = context.getSystemProperty("EXTERNAL_API_URL");
    var apiKey = context.getSystemProperty("EXTERNAL_API_KEY");

    // Prepare data
    var payload = {
        entities: context.getModifiedEntities(),
        timestamp: new Date().toISOString(),
        source: "EPMware"
    };

    // Call external API
    var response = context.httpRequest({
        url: endpoint + "/sync",
        method: "POST",
        headers: {
            "Authorization": "Bearer " + apiKey,
            "Content-Type": "application/json"
        },
        body: JSON.stringify(payload)
    });

    if (response.statusCode === 200) {
        return {
            status: "SUCCESS",
            syncId: response.body.syncId
        };
    } else {
        throw new Error("Sync failed: " + response.statusCode);
    }
}

Script Editor

The built-in editor provides syntax highlighting, validation, and testing capabilities.

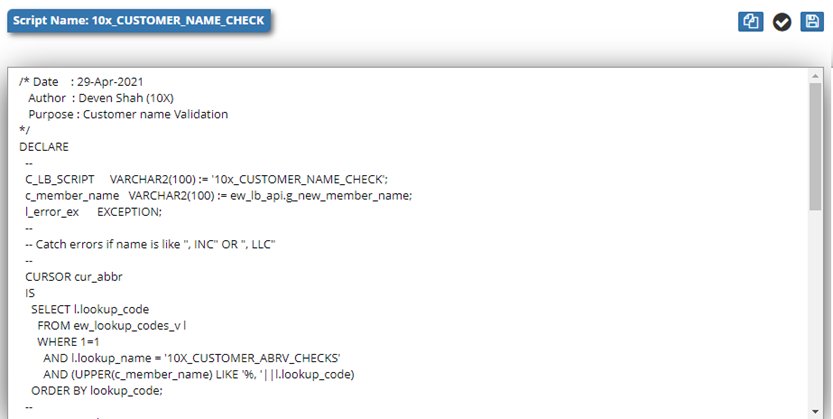

Logic Builder Editor
Script editor with syntax highlighting

Editor Features

Feature Description Shortcut
Syntax Highlighting Language-aware coloring Automatic
Auto-complete Code suggestions Ctrl+Space
Validation Syntax checking Click validate
Save Persist changes Ctrl+S
Copy Copy to clipboard Ctrl+C
Format Auto-format code Ctrl+Shift+F

Using the Editor

Editor Toolbar
Editor toolbar with action buttons

  1. Load Script - Click script name in grid
  2. Edit Code - Modify in editor pane
  3. Validate - Click validate icon (✓)
  4. Save Changes - Click save icon
  5. Copy Code - Click copy icon

Validation Results

Script validation checks: - Syntax errors - Undefined variables - Function signatures - Return statements - Exception handling

Validation Best Practice

Always validate scripts before saving, especially after major changes.

API Reference

Context Object

The context object provides access to EPMware data and functions:

// Request context
context.requestId           // Current request ID
context.userId              // Current user ID
context.applicationId       // Application ID
context.dimensionId        // Dimension ID
context.workflowStage      // Current workflow stage

// Data access
context.getMemberProperty(propName)
context.getRequestProperty(propName)
context.getSystemProperty(propName)
context.getUserProperty(propName)

// Operations
context.log(level, message)
context.sendEmail(options)
context.executeDBFunction(name, params)
context.httpRequest(options)
context.assignToGroup(groupName)

Database Functions

Execute SQL and PL/SQL:

// Execute query
var results = context.executeQuery(
    "SELECT * FROM ew_members WHERE app_id = :appId",
    { appId: context.applicationId }
);

// Execute stored procedure
var result = context.executeDBFunction("VALIDATE_HIERARCHY", {
    p_app_id: context.applicationId,
    p_dim_id: context.dimensionId
});

Utility Functions

Common helper functions:

// Date formatting
function formatDate(date, pattern) {
    // pattern: "YYYY-MM-DD", "MM/DD/YYYY", etc.
    return context.formatDate(date, pattern);
}

// String manipulation
function padLeft(str, length, char) {
    return String(str).padStart(length, char);
}

// Number formatting
function formatCurrency(amount) {
    return new Intl.NumberFormat('en-US', {
        style: 'currency',
        currency: 'USD'
    }).format(amount);
}

// Array operations
function unique(array) {
    return [...new Set(array)];
}

Script Examples

Example 1: Member Name Validation

// Validate member name format and uniqueness
function validateMemberName(context) {
    var memberName = context.propertyValue;
    var dimension = context.dimensionName;

    // Check format
    if (!/^[A-Z][A-Z0-9_]{2,49}$/.test(memberName)) {
        return {
            valid: false,
            message: "Member name must start with letter, 3-50 chars, uppercase/numbers/underscore only"
        };
    }

    // Check reserved words
    var reserved = ["ALL", "NONE", "NULL", "DEFAULT", "SYSTEM"];
    if (reserved.includes(memberName)) {
        return {
            valid: false,
            message: memberName + " is a reserved word"
        };
    }

    // Check uniqueness
    var exists = context.executeQuery(
        "SELECT COUNT(*) cnt FROM ew_members WHERE member_name = :name AND dim_name = :dim",
        { name: memberName, dim: dimension }
    );

    if (exists[0].cnt > 0) {
        return {
            valid: false,
            message: "Member name already exists in " + dimension
        };
    }

    return { valid: true };
}

Example 2: Hierarchy Level Validation

// Ensure hierarchy doesn't exceed maximum depth
function validateHierarchyDepth(context) {
    var maxDepth = 10;
    var parentId = context.parentMemberId;
    var depth = 0;

    // Traverse up to root
    while (parentId && depth < maxDepth + 1) {
        var parent = context.executeQuery(
            "SELECT parent_member_id FROM ew_hierarchy WHERE member_id = :id",
            { id: parentId }
        );

        if (parent.length > 0) {
            parentId = parent[0].parent_member_id;
            depth++;
        } else {
            break;
        }
    }

    if (depth >= maxDepth) {
        return {
            valid: false,
            message: "Hierarchy depth cannot exceed " + maxDepth + " levels"
        };
    }

    return { valid: true };
}

Example 3: Email Custom Tags

// Add custom tags to email templates
function addCustomEmailTags(context) {
    var requestId = context.requestId;

    // Get request details
    var request = context.executeQuery(
        "SELECT * FROM ew_request_headers WHERE request_id = :id",
        { id: requestId }
    );

    // Calculate custom values
    var customTags = {
        'REQUEST_AGE_DAYS': calculateAgeDays(request[0].created_date),
        'TOTAL_CHANGES': getTotalChanges(requestId),
        'RISK_LEVEL': calculateRiskLevel(requestId),
        'NEXT_REVIEWER': getNextReviewer(requestId),
        'ESTIMATED_COMPLETION': estimateCompletion(requestId)
    };

    return customTags;
}

function calculateAgeDays(createdDate) {
    var now = new Date();
    var created = new Date(createdDate);
    var diffMs = now - created;
    return Math.floor(diffMs / (1000 * 60 * 60 * 24));
}

Best Practices

1. Code Organization

  • Modular Functions - Small, focused functions
  • Clear Naming - Descriptive function and variable names
  • Comments - Document complex logic
  • Constants - Define at script top
  • Error Handling - Use try-catch blocks

2. Performance

  • Optimize Queries - Use indexes and limits
  • Cache Results - Store frequently used data
  • Batch Operations - Process in groups
  • Async When Possible - Don't block execution
  • Clean Up - Release resources

3. Testing

  • Unit Tests - Test individual functions
  • Edge Cases - Handle nulls and extremes
  • Error Scenarios - Test failure paths
  • Performance Tests - Check with large datasets
  • Integration Tests - Verify with connected systems

4. Security

  • Input Validation - Never trust user input
  • SQL Injection - Use parameterized queries
  • Access Control - Check permissions
  • Audit Logging - Log sensitive operations
  • Encrypt Sensitive Data - Protect credentials

Troubleshooting

Common Issues

Issue Cause Solution
Script not appearing Disabled Enable in grid checkbox
Validation fails Syntax error Check error message, fix syntax
Script not executing Not assigned Verify script assignment in configuration
Timeout errors Long-running operation Optimize queries, add indexes
Null reference Missing data Add null checks
Permission denied Access rights Check user permissions

Debugging Techniques

Add Logging

function debugScript(context) {
    context.log("DEBUG", "Starting script execution");
    context.log("DEBUG", "Input: " + JSON.stringify(context));

    try {
        // Your logic here
        var result = processData(context);
        context.log("DEBUG", "Result: " + JSON.stringify(result));
        return result;

    } catch (error) {
        context.log("ERROR", "Failed: " + error.message);
        context.log("ERROR", "Stack: " + error.stack);
        throw error;
    }
}

Test in Isolation

// Create test harness
function testScript() {
    var mockContext = {
        propertyValue: "TEST123",
        dimensionName: "Entity",
        executeQuery: function(sql, params) {
            // Mock database response
            return [{ cnt: 0 }];
        }
    };

    var result = validateMemberName(mockContext);
    console.log("Test result:", result);
}

Script Logs

Access script execution logs:

  1. Navigate to Administration → Logs
  2. Filter by script name
  3. Review execution details
  4. Check error messages
  5. Analyze performance metrics

Integration Points

Property Configuration

Scripts integrate with member properties: - Validation Scripts - Property value checking - Derivation Scripts - Calculate values - Conditional Display - Show/hide properties - Default Values - Set initial values

Workflow Tasks

Custom tasks execute Logic Builder scripts: - Review Logic - Custom review processes - Approval Routing - Dynamic routing - Notifications - Enhanced emails - Integration Tasks - External system calls

Deployment

Pre/post deployment processing: - Backup Scripts - Create backups - Validation Scripts - Check readiness - Transformation Scripts - Modify data - Notification Scripts - Alert stakeholders

Export

Export processing scripts: - Pre-Export - Prepare data - Post-Export - Archive/distribute - Transformation - Format conversion - Validation - Quality checks
