Export Metadata

The Export Metadata module enables extraction of hierarchy and property data from EPMware to various file formats. It provides flexible configuration for exporting metadata to files, database views, or custom formats for reporting, backup, and integration purposes.

Export module showing the five configuration tabs

Overview

The Export module consists of five integrated components:

Export Profile - Define export configurations and formats
Export Details - Specify dimensions and properties to export
Export Format - Configure output structure and columns
Export - Execute exports and download results
Export Book - Group multiple exports for batch execution

Key capabilities include: - Multiple export formats (Parent-Child, Generations, Custom) - Property selection and filtering - Pre/post-processing scripts - Database view integration - Batch export books - Multi-environment support

Quick Links

📋 Profiles

Create export configurations with format options

Create Profile →

📊 Details

Select dimensions and properties to export

Configure Details →

📁 Formats

Define output structure and columns

Set Format →

📚 Books

Create export collections for batch processing

Build Books →

Export Profile

Export profiles define the overall configuration for metadata exports, including format type, generation settings, and processing scripts.

Export Profile configuration screen

Profile Configuration

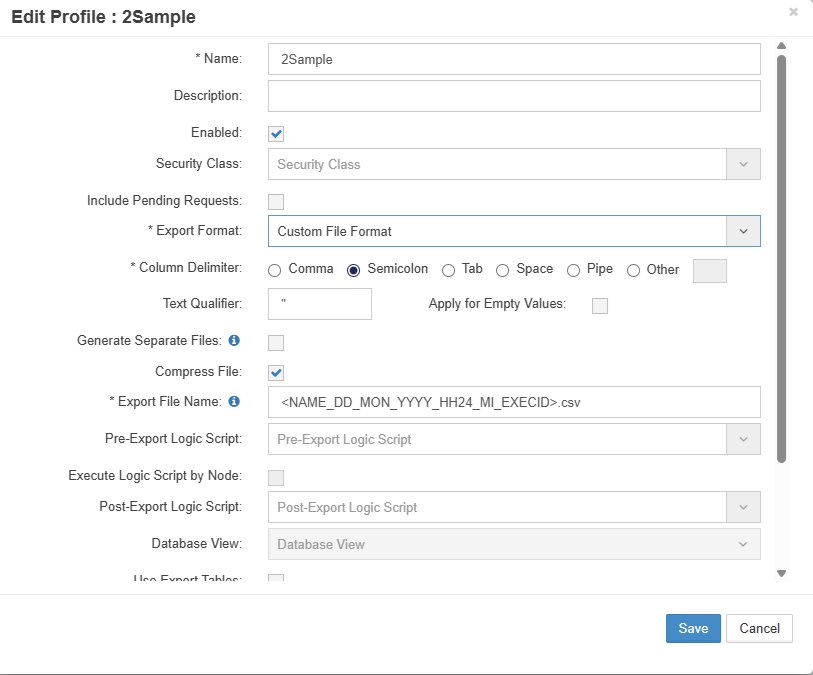

Create Profile dialog with format options

Creating Profiles

Select Export Profile tab
Click the + icon
Configure profile settings:

Field	Required	Description	Options
Profile Name	Yes	Unique identifier	User-defined
Description	No	Profile purpose	Text
Export Format	Yes	Output structure	See formats below
# of Generations	Conditional	For Generation format	1-20
Show Member Name in Generations	Conditional	Include names	Y/N
Fill Generations	Conditional	Fill empty cells	From dropdown
Column Delimiter	Conditional	Custom format delimiter	Comma, Tab, Pipe
Text Qualifier	Conditional	Text enclosure	Quotes, None
Pre Logic Script	No	Pre-processing	Logic Builder script
Post Logic Script	No	Post-processing	Logic Builder script
Database View	Conditional	View name	For DB view format
Environment	Conditional	Target environment	Multi-environment only

Export Formats

Parent-Child Format

Standard hierarchical export:

Parent,Child,Property1,Property2
Total_Entity,NA_Entity,USA Operations,Active
NA_Entity,USA,United States,Active
NA_Entity,Canada,Canada,Active

Generations Format

Columnar generation/level format:

Gen1,Gen2,Gen3,Property1,Property2
Total_Entity,NA_Entity,USA,USA Operations,Active
Total_Entity,NA_Entity,Canada,Canada Operations,Active
Total_Entity,EMEA_Entity,UK,UK Operations,Active

Configuration options: - # of Generations: Maximum depth to export - Show Member Name: Include member names in generation columns - Fill Generations: How to handle empty cells - Leave blank - Repeat parent - Use placeholder

Custom File Format

User-defined delimited format: - Choose delimiter (comma, tab, pipe, custom) - Set text qualifiers - Configure column order - Apply filters

Custom Database View

Export directly to database view: - Select predefined view - Map columns to view fields - Apply SQL transformations

Profile Examples

Example 1: Planning Dimension Export

Name: PLAN_ENTITY_EXPORT
Description: Entity dimension for Planning
Format: Parent-Child
Pre Script: VALIDATE_ENTITY_EXPORT
Post Script: ARCHIVE_EXPORT_FILE
Environment: Production

Example 2: Reporting Generation Export

Name: REPORT_ACCOUNT_GEN
Description: Account hierarchy in generation format
Format: Generations
# of Generations: 8
Show Member Name: Y
Fill Generations: Repeat Parent

Performance Optimization

For large exports, disable Export Tables in the profile to significantly improve execution performance.

Export Details

Export Details specify which dimensions and properties to include in the export.

Export Details configuration screen

Configuring Details

Export Details configuration dialog

Select Export Details tab
Select Export Profile from dropdown
Click + icon to add dimension
Configure dimension export:

Field	Description	Example
Application	Source application	HFM_PROD
Dimension	Dimension to export	Entity
Top Level Member	Starting point	Total_Entity
Member Name	Specific member filter	US_Operations
Export Sequence #	Order in export	10, 20, 30
Base Members Only	Exclude parents	✓
Include Shared Members	Export shared instances	✓
Show Properties for Shared	Properties on shared	✓

Property Selection

Click Properties hyperlink to select specific properties:

Property selection for export

Property options: - Select All - Include all properties - Select Specific - Choose individual properties - Categories - Select by category - Required Only - Export required properties

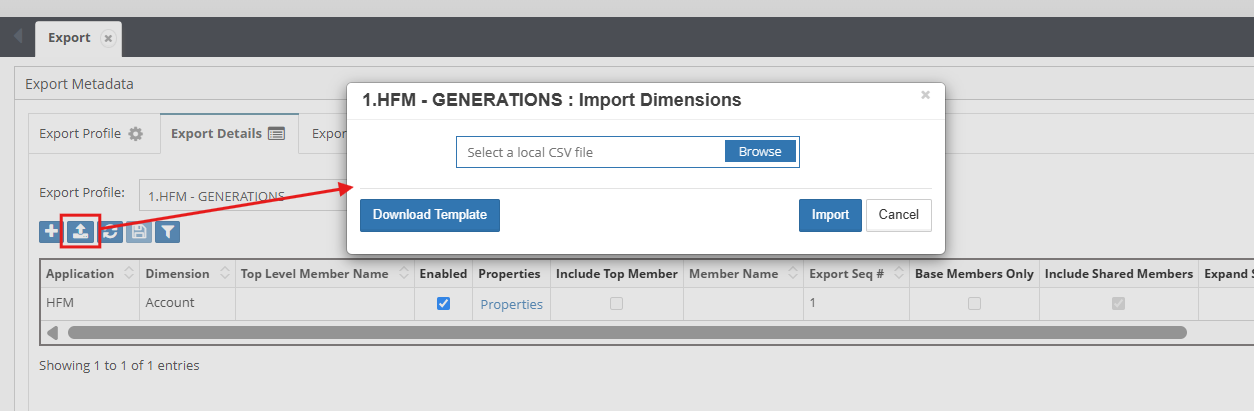

Bulk Upload

Upload multiple dimensions via CSV:

Click upload icon

Select CSV file with format:

Application,Dimension,TopMember,Sequence
HFM_PROD,Entity,Total_Entity,10
HFM_PROD,Account,Total_Account,20
HFM_PROD,Custom1,Total_C1,30

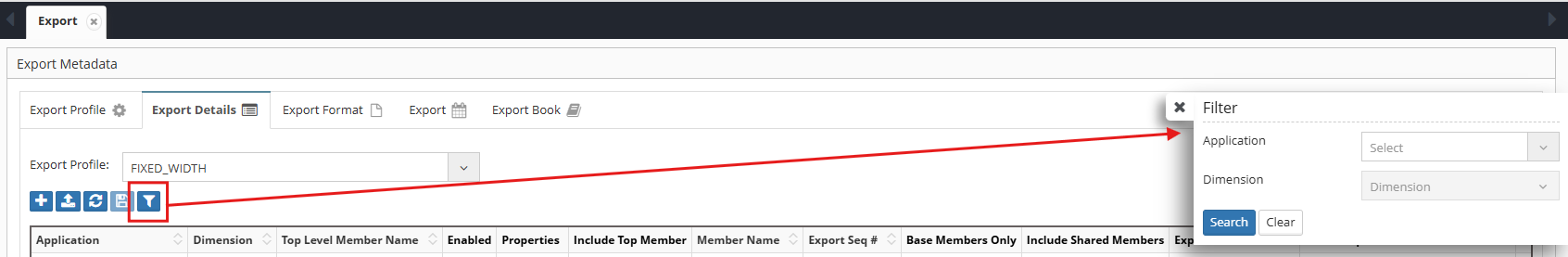

Filtering Options

Apply filters to export specific data:

Member filters - Include/exclude patterns
Property filters - Based on property values
Level filters - Specific generation/level
Status filters - Active/inactive members

Export Format

Define the structure and columns for the export output.

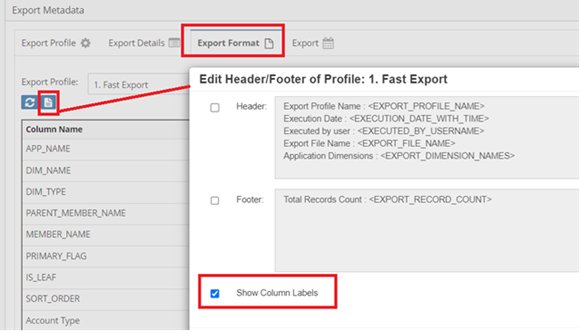

Export Format configuration screen

Format Configuration

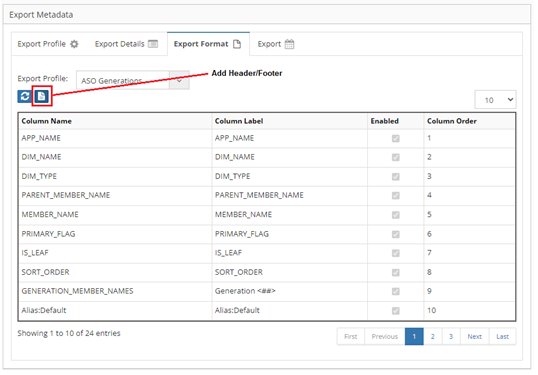

Format configuration with column mapping

Configure output columns:

Column Type	Description	Configuration
Hierarchy Columns	Parent/Child or Generation	Automatic based on format
Property Columns	Member properties	Select from available
Calculated Columns	Derived values	SQL expressions
Static Columns	Fixed values	Constants

Column Ordering

Control column sequence: 1. Drag columns to reorder 2. Hide/show columns 3. Set column headers 4. Apply formatting

Custom Transformations

Apply transformations to column values:

-- Example: Format member name
UPPER(member_name) as MEMBER_CODE

-- Example: Concatenate properties
property1 || '_' || property2 as COMBINED_CODE

-- Example: Conditional value
CASE
  WHEN status = 'A' THEN 'Active'
  WHEN status = 'I' THEN 'Inactive'
  ELSE 'Unknown'
END as STATUS_DESC

Export Execution

Run configured exports and download results.

Export execution screen with history

Running Exports

Select Export tab
Choose export type:
Profile - Single profile export
Book - Export book execution
Select specific profile or book
Click Export button

Export Progress

Monitor export execution:

Export progress indicator

Progress indicators: - Initialization - Data extraction - Transformation - File generation - Completion

Export History

Each export creates a row in the grid:

Column	Description
Execution ID	Unique identifier
Profile/Book	Export name
Start Time	Execution start
End Time	Completion time
Status	Success/Failed
Records	Row count
Download	File download link

Downloading Results

Click download icon (📥) in grid row
File downloads to browser
File naming: ProfileName_YYYYMMDD_HHMMSS.ext

Export Book

Export Books group multiple export profiles for batch execution.

Export Book configuration screen

Creating Books

Create Book dialog

Select Export Book tab
Click + icon
Configure book:

Field	Description	Example
Name	Book identifier	MONTHLY_EXPORTS
Description	Book purpose	Monthly hierarchy exports
Enabled	Active status	✓

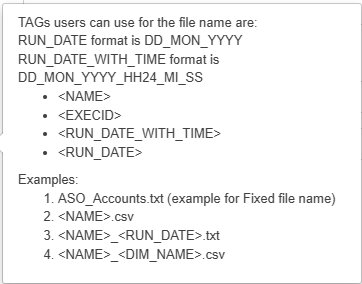

File Name	Output pattern	Export_{DATE}_{TIME}
Merge Files	Combine exports	✓
Compress Files	ZIP output	✓

Adding Profiles to Books

Select book from grid
Click Assign Profiles
Move profiles from Available to Assigned
Set execution order
Click Save

Book Execution

Books can: - Execute all profiles in sequence - Merge results into single file - Compress output to ZIP - Apply book-level scripts - Send consolidated notifications

Example: Complete System Export

Book Name: FULL_SYSTEM_BACKUP
Description: Complete metadata backup
Profiles:
  1. ENTITY_HIERARCHY
  2. ACCOUNT_HIERARCHY
  3. CUSTOM_DIMENSIONS
  4. SECURITY_ASSIGNMENTS
  5. PROPERTY_MAPPINGS
Merge Files: Yes
Compress: Yes
Output: BACKUP_20240315_230000.zip

Export Examples

Example 1: Financial Consolidation Export

Profile Configuration:

Name: FIN_CONSOLIDATION
Format: Parent-Child
Description: Financial consolidation hierarchies

Details:

Application: HFM_PROD
Dimensions:
  - Entity (all properties)
  - Account (selected properties)
  - Custom1 (base members only)

Output:

Parent,Child,Description,Currency,Status
Total_Entity,NA,North America,USD,Active
NA,USA,United States,USD,Active
NA,Canada,Canada,CAD,Active

Example 2: Planning Generations Export

Profile Configuration:

Name: PLAN_GENERATIONS
Format: Generations
Generations: 6
Show Member Name: Y

Output:

Gen1,Gen2,Gen3,Gen4,Gen5,Gen6,Alias,UDA
Total,Revenue,Product_Rev,Hardware,Servers,Server_A,Server Model A,Critical
Total,Revenue,Product_Rev,Hardware,Servers,Server_B,Server Model B,Standard

Example 3: Security Export

Profile Configuration:

Name: SECURITY_EXPORT
Format: Custom Database View
View: VW_SECURITY_EXPORT

Details:

Include:
  - Member security classes
  - Access levels
  - User assignments

Best Practices

1. Profile Design

Naming Convention - Use descriptive, consistent names
Documentation - Maintain descriptions
Reusability - Create generic profiles
Version Control - Track profile changes
Testing - Validate in non-production

2. Performance Optimization

Disable Export Tables - For large exports
Filter Data - Export only needed members
Batch Processing - Use books for multiple exports
Off-Peak Execution - Schedule during low usage
Compression - ZIP large files

3. Data Quality

Validation Scripts - Pre-export checks
Property Selection - Export relevant properties only
Consistent Format - Standardize across exports
Archive Exports - Maintain history
Error Handling - Check logs for issues

4. Integration

Scheduling - Automate regular exports
File Naming - Use patterns for downstream systems
Notifications - Alert on completion/failure
Post-Processing - Transform for target systems
Security - Encrypt sensitive exports

Troubleshooting

Common Issues

Issue	Cause	Solution
Export timeout	Large data volume	Increase timeout, disable export tables
Missing properties	Not selected	Check property selection in Details
Wrong format	Profile misconfigured	Verify format settings
Empty export	Filters too restrictive	Review filter criteria
Generation columns empty	Depth insufficient	Increase # of generations
File not downloading	Browser blocked	Check download settings
Book fails	Profile error	Test profiles individually

Performance Tuning

Optimize export performance:

Global Settings → Application Settings:
- Maximum # of Minutes for Export Task: 180
- Disable Export Tables: For large exports
- Batch Size: Adjust for memory usage

Export Logs

Review export logs for: - Row counts - Processing time - Warning messages - Error details - Memory usage

Database Views

For custom database view exports:

-- Verify view exists and is accessible
SELECT * FROM user_views WHERE view_name = 'VW_YOUR_EXPORT';

-- Check view permissions
SELECT * FROM user_tab_privs WHERE table_name = 'VW_YOUR_EXPORT';

-- Test view query
SELECT COUNT(*) FROM VW_YOUR_EXPORT;

Integration Points

Logic Builder

Pre/post-processing scripts: - Data validation - File archival - Transformation logic - Integration calls

Scheduling

Automate exports: - Regular backups - Reporting cycles - System integration - Compliance requirements

Email Notifications

Export notifications: - Completion alerts - Error notifications - File attachments - Distribution lists

External Systems

Integration patterns: - File-based integration - Database views - API consumption - ETL processes

Logic Builder - Create pre/post export scripts
Global Settings - Export timeout configuration
Email Templates - Export notifications
Migration - Export for environment migration
Report Generation - Export-based reporting

Export Metadata

Overview

Quick Links

📋 Profiles

📊 Details

📁 Formats

📚 Books

Export Profile

Profile Configuration

Creating Profiles

Export Formats

Parent-Child Format

Generations Format

Custom File Format

Custom Database View

Profile Examples

Example 1: Planning Dimension Export

Example 2: Reporting Generation Export

Export Details

Configuring Details

Property Selection

Bulk Upload

Filtering Options

Export Format

Format Configuration

Column Ordering

Custom Transformations

Export Execution

Running Exports

Export Progress

Export History

Downloading Results

Export Book

Creating Books

Adding Profiles to Books

Book Execution

Example: Complete System Export

Export Examples

Example 1: Financial Consolidation Export

Example 2: Planning Generations Export

Example 3: Security Export

Best Practices

1. Profile Design

2. Performance Optimization

3. Data Quality

4. Integration

Troubleshooting

Common Issues

Performance Tuning

Export Logs

Database Views

Integration Points

Logic Builder

Scheduling

Email Notifications

External Systems

Related Topics
