Out of the Box Validations

EPMware provides comprehensive standard validations for supported applications, ensuring data integrity and compliance with target system requirements. These validations are automatically applied when applications are configured.

Standard Validations Overview Overview of standard validations in EPMware

Overview

All standard validations for supported application types are configured as Logic Scripts in the Logic Builder module. These validations are automatically assigned when an application is registered in EPMware.

Key Features

  • Automatic Assignment - Validations apply immediately upon application configuration
  • Property-Based - Validations target specific member properties
  • Application-Specific - Rules tailored to each target system's requirements
  • Customizable - Clone and modify standard validations as needed

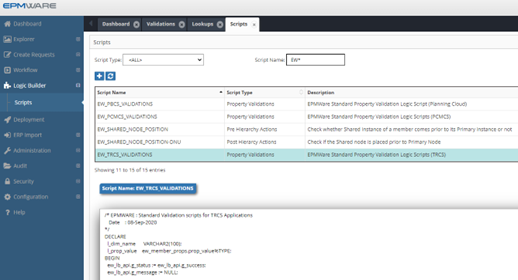

Logic Builder Standard Validations Logic Builder module showing standard validation scripts with EW prefix

Validation Architecture

How Validations Work

graph LR
    A[User Request] --> B[Property Validation]
    B --> C{Valid?}
    C -->|Yes| D[Process Request]
    C -->|No| E[Return Error]
    E --> F[Display Message]
    D --> G[Deploy to Target]

Validation Assignment

When an application is imported or created, EPMware automatically:

  1. Identifies the application type
  2. Assigns corresponding validation scripts
  3. Activates property-level checks
  4. Enables real-time validation

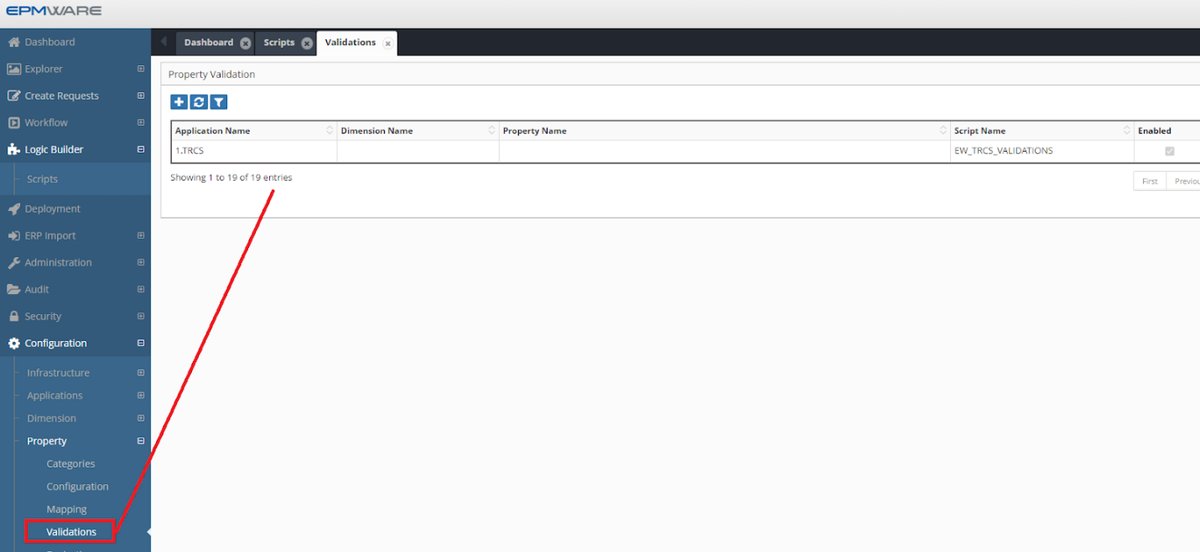

Validation Assignment Screen Association of standard validations to applications

Supported Applications

☁️ Oracle Cloud EPM

  • PBCS - Planning & Budgeting
  • FCCS - Financial Close
  • TRCS - Tax Reporting
  • ARCS - Account Reconciliation
  • PCMCS - Profitability Management

🏢 On-Premise EPM

  • HFM - Financial Management
  • Essbase (ASO/BSO)
  • Planning
  • FDMEE - Data Management

🔄 ERP Systems

  • Oracle Fusion Cloud
  • Oracle EBS GL
  • OneStream XF

Oracle EPM Cloud Validations

TRCS (Tax Reporting Cloud Service)

Validation Script: EW_TRCS_VALIDATIONS

TRCS Validation Configuration TRCS validation configuration in Property Validations

Member Name & Alias Validations

Validation Rule Max Length
Member Name No trailing/leading spaces 76 chars
Alias Unique within alias table 80 chars
Special Characters Not allowed: " ] [ \t -
Reserved Prefixes Cannot start with: OEP_, OFS_, OCX_ -

Prohibited Starting Characters

@ \ [ ] ( ) , - . / ; = + _ { | } < > "

Reserved Words

The following words cannot be used as member names:

Click to expand full list of reserved words - ALL, AND, ASSIGN, AVERAGE, CALC, CALCMBR - COPYFORWARD, CROSSDIM, CURMBRNAME - DIM, DIMNAME, DIV, DYNAMIC - EMPTYPARM, EQ, EQOP, EXCEPT, EXP - FLOAT, FUNCTION, GE, GEN, GROUP, GT - INTEGER, LE, LOCAL, LT - MBR, MBRNAME, MINUS, MISSING, MUL - NE, NON, NONINPUT, NOT, OR - PERCENT, PLUS, RELOP, SET - SKIPBOTH, SKIPMISSING, SKIPNONE, SKIPZERO - STATUS, TO, TOP, TYPE - UMINUS, UPPER, VARORXMBR - $$UNIVERSE$$, #MISSING, #MI

PCMCS (Profitability & Cost Management)

Validation Script: EW_PCMCS_VALIDATIONS

Similar to TRCS with additional rules: - Member name max length: 80 characters - Supports POV-specific validations - Additional cost allocation constraints

PBCS/Planning

Validation Script: EW_HP_VALIDATIONS

PBCS Validation Rules PBCS and Planning validation rules configuration

Key Validations

  1. Data Storage Property
  2. Label Only members cannot be leaf members

  3. Label Only members cannot have formulas

  4. Account Type Property

  5. If Account Type = Expense, Variance Reporting must be "Expense"

  6. Variance Reporting Property

  7. Must align with Account Type settings

Essbase Validations

Validation Script: EW_ESSBASE_VALIDATIONS

ASO-Specific Rules

Essbase ASO Validations Essbase ASO-specific validation configuration

Rule Description Applies To
Consolidation Stored hierarchies require (+) aggregation ASO only
Member Formula Dynamic hierarchies only ASO/BSO
Data Storage Parent members use Dynamic Calc BSO only

Automation Options

Auto-Configure Data Storage (BSO)

Script: EW_EB_DATA_STORAGE_PROP

This optional script automatically: - Sets parent members to "Dynamic Calc" - Sets base members to "Store" - Triggers on hierarchy changes

Data Storage Automation Configuring automatic Data Storage property for BSO applications

Configuration Steps: 1. Navigate to Configuration → Dimensions → Hierarchy Actions 2. Assign script as Post Hierarchy Action 3. Select "Create Member" action 4. Apply to dimension

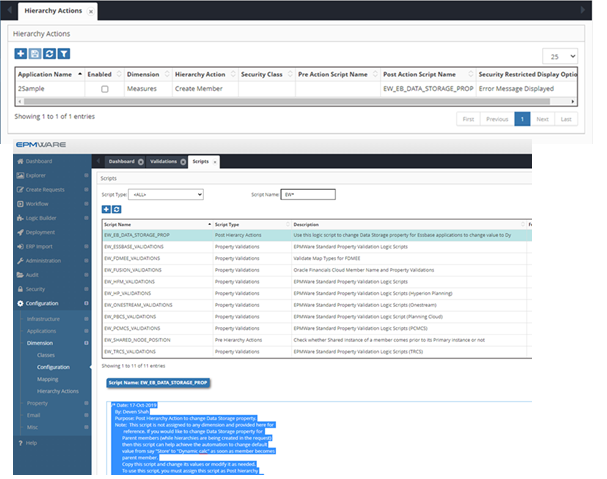

Hierarchy Actions Assignment Assigning post-hierarchy action script to dimension

HFM Validations

Validation Script: EW_HFM_VALIDATIONS

Character Restrictions

Character Type Prohibited Notes
Special Chars " # * + , - . / ; @ { } In member names
Ampersand & In aliases only
ICP Rules - Special validation logic

ICP Validation Rules

If "Is ICP" = Y or R, then "ICP Top Member" must be assigned (cannot be "ICP None")

ERP System Validations

Oracle Fusion Cloud

Validation Script: EW_FUSION_VALIDATIONS

Fusion GL Validations Oracle Fusion GL validation configuration

Dimension-Specific Rules

Property Validation Configuration
Member Length Max defined by segment Set in dimension properties
Numeric Members Account dimension only NUMERIC_MEMBER_NAME = Y
Summary Flag Required for parents Auto-set to Y
Allow Posting Disabled for parents Auto-set to N

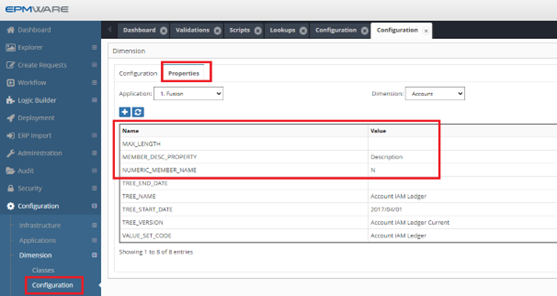

Fusion Dimension Properties Dimension properties affecting validation rules

OneStream

Validation Script: EW_ONESTREAM_VALIDATIONS

Reserved Words

  • Account, All, Cons, Consolidation
  • Default, DimType, Entity
  • Flow, Origin, IC, None, POV, Parent, Root
  • All Root*Dim variations

Special Character Restrictions

! # % & * + , - / ; < = > ? @ [ \ ] ^ { | } "

FDMEE Validations

Validation Script: EW_FDMEE_VALIDATIONS

FDMEE Mapping Validations FDMEE mapping validation rules

Mapping Type Rules

Mapping Type Validation Rule
EXPLICIT Source and Target required
BETWEEN One comma required in Source
IN No commas allowed in Source
LIKE Must contain * or ? wildcard

Custom Validations

Creating Custom Validations

  1. Clone Standard Validation
  2. Select standard script in Logic Builder
  3. Right-click → Clone
  4. Modify as needed

Clone Validation Script Cloning a standard validation script for customization

  1. Create New Validation
  2. Logic Builder → Create Script
  3. Type: Property Validation

  4. Write custom logic

  5. Assign to Application

  6. Configuration → Property → Validations
  7. Add validation rule
  8. Select target properties

Custom Validation Assignment Assigning custom validation to application properties

Validation Script Structure

// Example validation script structure
function validateProperty(context) {
    var memberName = context.getMemberName();
    var propValue = context.getPropertyValue();

    // Validation logic
    if (propValue.length > 80) {
        return {
            valid: false,
            message: "Property exceeds maximum length of 80 characters"
        };
    }

    return { valid: true };
}

Validation Management

Enabling/Disabling Validations

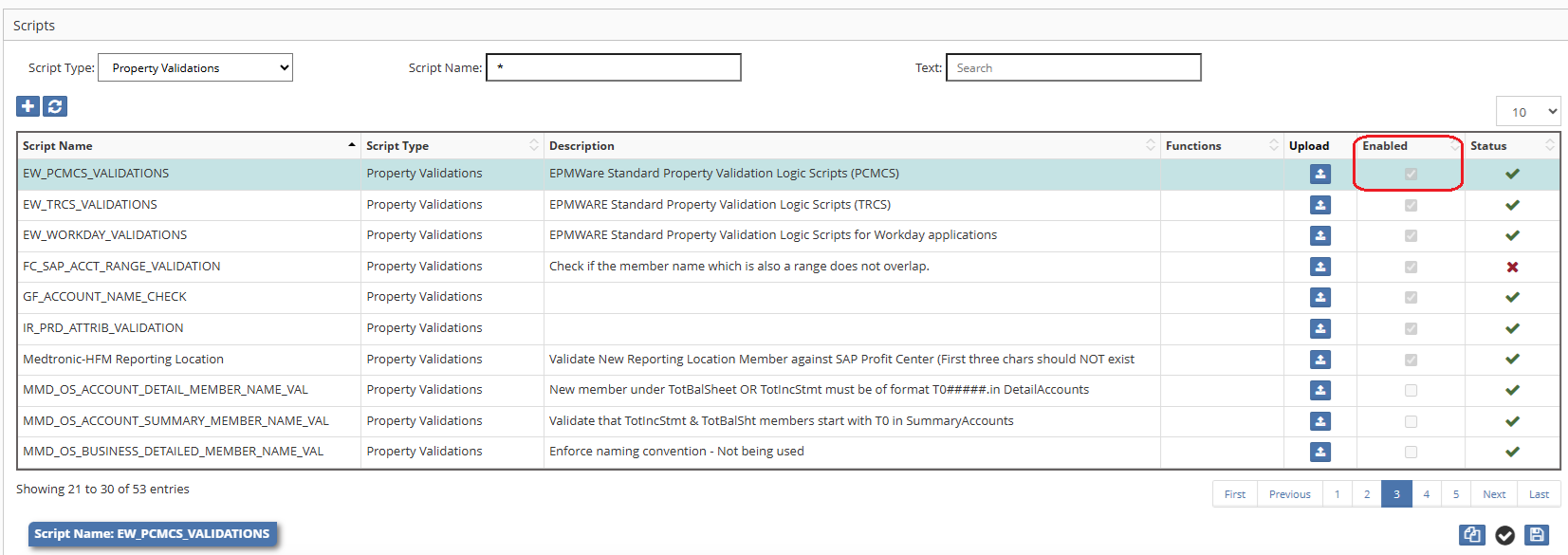

Validation Enable Disable Managing validation status in Property Validations screen

Action Steps Impact
Disable Uncheck "Enabled" box Validation skipped
Enable Check "Enabled" box Validation active
Delete Right-click → Delete Permanent removal

Validation Priority

When multiple validations apply:

  1. Member-level validations execute first
  2. Property-specific validations next
  3. Dimension-level validations
  4. Application-level validations last

Best Practices

DO's ✅

  • Test custom validations thoroughly
  • Document validation rules
  • Use descriptive error messages
  • Keep validation logic simple
  • Monitor validation performance

DON'Ts ❌

  • Don't modify standard validations directly
  • Don't disable critical validations
  • Don't create overlapping rules
  • Don't use complex SQL in validations
  • Don't ignore validation errors

Troubleshooting

Common Validation Issues

Issue Cause Solution
Validation not firing Script disabled Enable in configuration
False positives Logic error Review script logic
Performance impact Complex SQL Optimize queries
Missing validations Not assigned Check property assignments

Debug Steps

  1. Check Script Status
  2. Logic Builder → View script

  3. Verify "Enabled" status

  4. Review Assignment

  5. Configuration → Property → Validations

  6. Confirm application mapping

  7. Test Manually

  8. Create test request
  9. Trigger specific validation
  10. Review error messages

Validation Debug Screen Debug screen showing validation execution details

Quick Reference

Validation Scripts by Application

Application Type Script Name Auto-Applied
TRCS EW_TRCS_VALIDATIONS ✅
PCMCS EW_PCMCS_VALIDATIONS ✅
PBCS/Planning EW_HP_VALIDATIONS ✅
Essbase EW_ESSBASE_VALIDATIONS ✅
HFM EW_HFM_VALIDATIONS ✅
FDMEE EW_FDMEE_VALIDATIONS ✅
Fusion GL EW_FUSION_VALIDATIONS ✅
OneStream EW_ONESTREAM_VALIDATIONS ✅

Optional Enhancement Scripts

Script Purpose Application
EW_EB_DATA_STORAGE_PROP Auto-set data storage Essbase BSO
EW_DERIVE_CONSOLIDATION Calculate consolidation All
EW_SMART_LIST_VALIDATION Validate smart lists Planning

Support

For validation assistance:

📧 Email: support@epmware.com
📞 Phone: 408-614-0442

Validation Tip

Always test validation changes in a non-production environment first. Use the Logic Builder's validate function to check syntax before saving.
