OneStream Configuration

This appendix provides detailed configuration requirements for linking EPMware to OneStream XF applications, enabling hierarchy import and direct metadata deployment through REST APIs.

OneStream Integration Overview OneStream XF integration architecture with EPMware

Overview

EPMware integrates with OneStream XF through REST APIs and custom business rules, providing automated metadata management and deployment capabilities. This guide covers the complete configuration process from initial setup to production deployment.

Prerequisites

Before beginning configuration, ensure you have:

  • ✅ OneStream XF 5.0 or later
  • ✅ Administrative access to OneStream
  • ✅ EPMware application access
  • ✅ EPMWARE.dll file (provided by EPMware)
  • ✅ Okta or OIS authentication configured

Part 1: Import OneStream Application

Required Extract Files

To import a OneStream application into EPMware, extract the following artifacts:

  1. Application Properties - ApplicationProperties.xml
  2. Workflow Channels - WorkflowChannels.xml
  3. Metadata - <AppName>_Metadata.xml
  4. Security Groups - Security_Groups.xml

Extract Application Artifacts

Step 1: Access Application Tools

  1. Login to OneStream application
  2. Select Application tab
  3. Navigate to Tools → Load/Extract

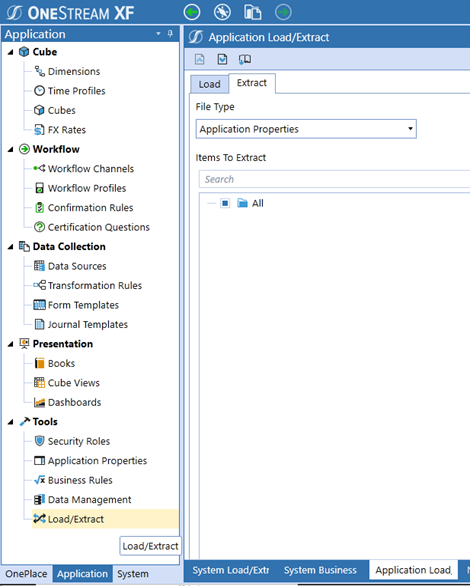

OneStream Application Tab OneStream application tab with Load/Extract tools

Step 2: Extract Application Properties

  1. Select Application Properties from dropdown
  2. Click Extract icon
  3. Save as ApplicationProperties.xml

Extract Application Properties Extracting Application Properties to XML file

Step 3: Extract Metadata

  1. Select Metadata from dropdown
  2. Expand and select:
  3. ✅ Business Rules
  4. ✅ Dimensions
  5. Click Extract icon
  6. Save as <AppName>_Metadata.xml

Extract Metadata Selection Metadata extraction with Business Rules and Dimensions selected

Step 4: Extract Workflow Channels

  1. Select Workflow Channels from dropdown
  2. Click Extract icon
  3. Save as WorkflowChannels.xml

Extract Security Artifacts

  1. Select Security tab
  2. Navigate to Tools → Load/Extract
  3. Select Security from dropdown
  4. Choose Security Groups
  5. Extract as Security_Groups.xml

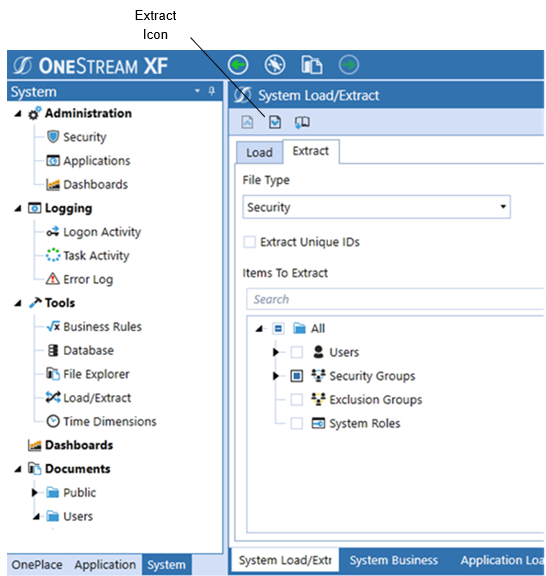

Security Groups Extraction Security Load/Extract screen with Security Groups selected

Create Import ZIP File

Package all extracted files:

onestream_import.zip
├── ApplicationProperties.xml
├── WorkflowChannels.xml
├── GolfStream_Metadata.xml
└── Security_Groups.xml

ZIP File Structure Required file structure for EPMware import

Part 2: Configure OneStream for Deployment

Create Business Rule

Step 1: Access Business Rules

  1. Navigate to Application → Tools → Business Rules
  2. Click New Business Rule icon
  3. Select Extender type
  4. Name: EPMWARE_DataMgmt

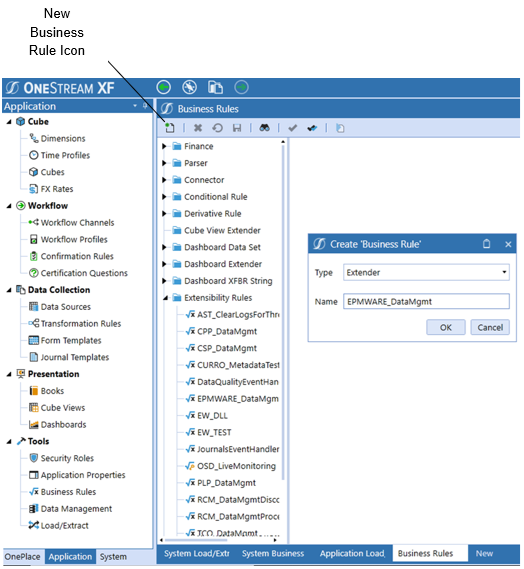

Create Business Rule Creating new Extender business rule for EPMware

Step 2: Configure Properties

  1. Select Properties tab
  2. Add Referenced Assembly: XF\EPMWARE.dll
  3. Save configuration

Business Rule Properties Business Rule Properties with EPMWARE.dll reference

Step 3: Add Formula Code

  1. Select Formula tab
  2. Copy the provided VB.NET code
  3. Paste into formula editor
  4. Save business rule

Business Rule Formula EPMWARE_DataMgmt business rule formula editor

Click to view complete business rule code
Imports System
Imports System.Data
Imports System.Collections.Generic
Imports OneStream.Shared.Common
Imports OneStream.Finance.Engine
Imports OneStream.BusinessRule.Extender.EPMWARE_DLL

Namespace OneStream.BusinessRule.Extender.EPMWARE_DataMgmt
    Public Class MainClass
        Public Function Main(ByVal si As SessionInfo, _
                           ByVal globals As BRGlobals, _
                           ByVal api As Object, _
                           ByVal args As ExtenderArgs) As Object
            Try
                Dim MainClass As New EWMainClass()
                Return MainClass.Main(si, globals, api, args)
            Catch ex As Exception
                Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
            End Try
        End Function
    End Class
End Namespace

Code Formatting

Remove any page numbers if they appear when copying from documentation.

Create Data Management Configuration

Step 1: Create Data Management Group

  1. Navigate to Application → Tools → Data Management
  2. Click New Data Management Group icon
  3. Name: EPMWARE Metadata Adapter
  4. Save

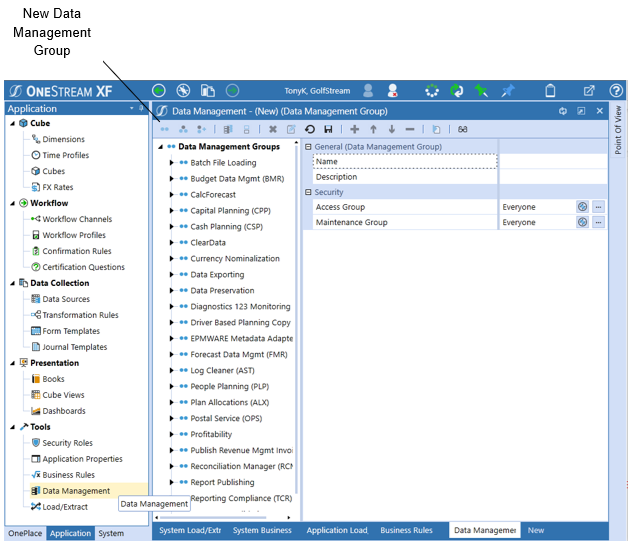

Create Data Management Group Creating EPMWARE Metadata Adapter data management group

Step 2: Create Sequence

  1. Select EPMWARE Metadata Adapter group
  2. Click Create Sequence icon
  3. Name: Deploy Metadata
  4. Save

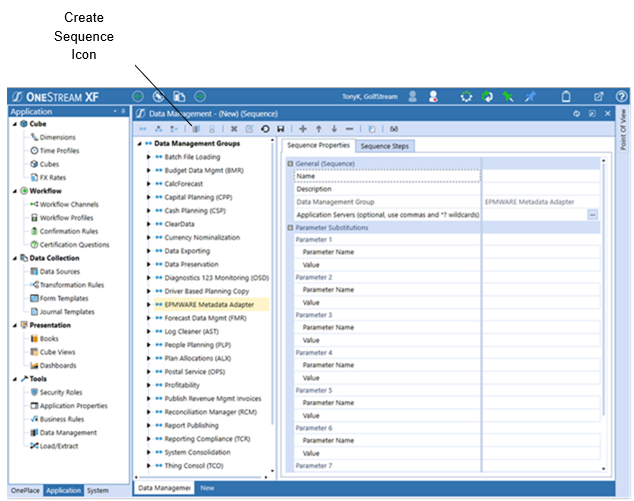

Create Deploy Sequence Creating Deploy Metadata sequence

Step 3: Create and Configure Step

  1. Click Step icon
  2. Select Execute Business Rule
  3. Language: Visual Basic (VB)
  4. Name: Deploy Metadata
  5. Assign business rule: EPMWARE_DataMgmt

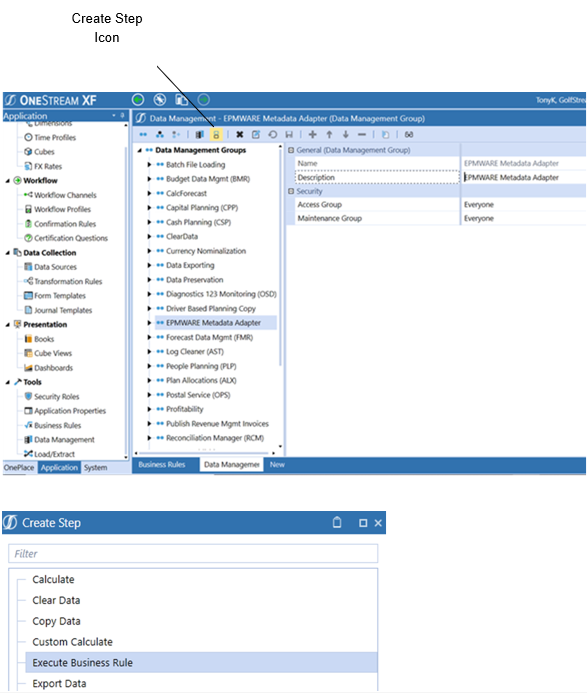

Create Deployment Step Execute Business Rule step configuration dialog

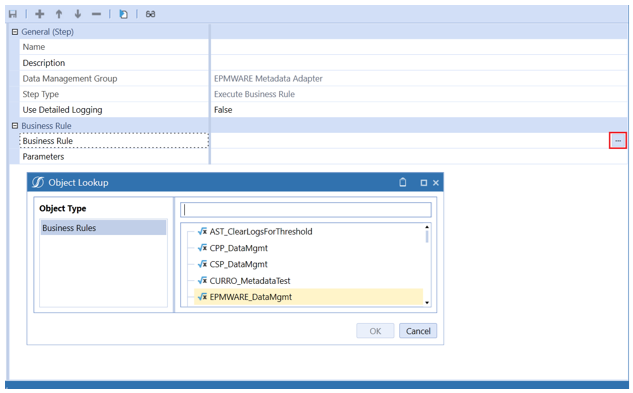

Assign Business Rule to Step Assigning EPMWARE_DataMgmt business rule to step

Step 4: Assign Step to Sequence

  1. Select Deploy Metadata sequence
  2. Navigate to Sequence Steps tab
  3. Click + to add step
  4. Select Deploy Metadata step
  5. Save

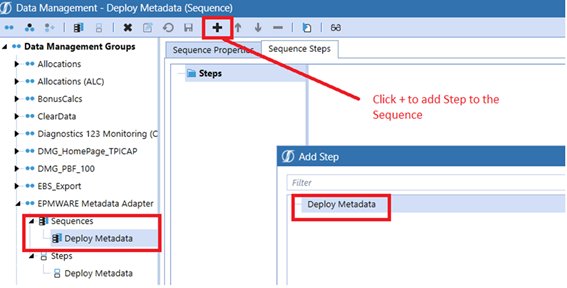

Assign Step to Sequence Assigning Deploy Metadata step to sequence

Part 3: Configure Authentication

Create REST API User

  1. Navigate to System → Administration → Security
  2. Click New User icon
  3. Configure user:
  4. Name: REST API
  5. Add to Administrators group
  6. External Auth Provider: Okta
  7. Internal Password: Set secure password

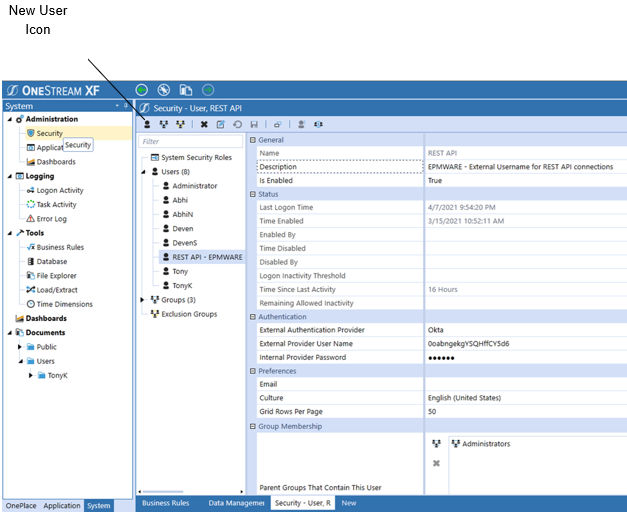

Create REST API User Creating REST API user with administrator privileges

Authentication Options

Option 1: Okta Configuration

Configure these properties in EPMware:

Property Description Source
OS_REST_API_CLIENT_ID Okta M2M Client ID Okta Admin
OS_REST_API_CLIENT_SECRET_KEY Okta M2M Secret Key Okta Admin
OS_REST_API_SCOPE Okta Scope Name Okta Admin
OS_REST_API_URL Okta URL with Auth Server Okta Admin
OS_REST_API_USERNAME REST API user name OneStream

Option 2: OIS Configuration

For OneStream Identity Server:

Property Description Source
OS_REST_API_TOKEN Personal Access Token OneStream Help Desk
OS_REST_API_USERNAME REST API user name OneStream

Part 4: EPMware Configuration

Application Setup

  1. Navigate to Configuration → Applications → Configuration
  2. Create new application:
  3. Type: OneStream
  4. Target Application: OneStream app name
  5. Deployment: Direct

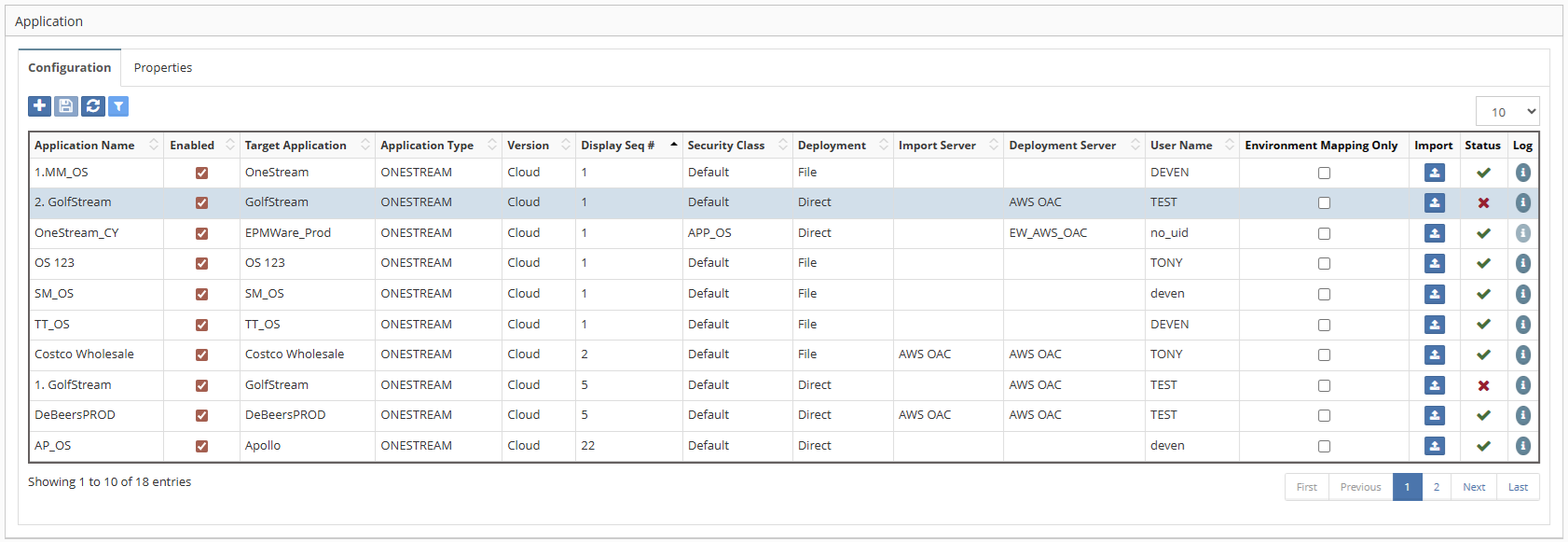

EPMware OneStream Application EPMware application configuration for OneStream

Configure Application Properties

Navigate to Properties tab and configure:

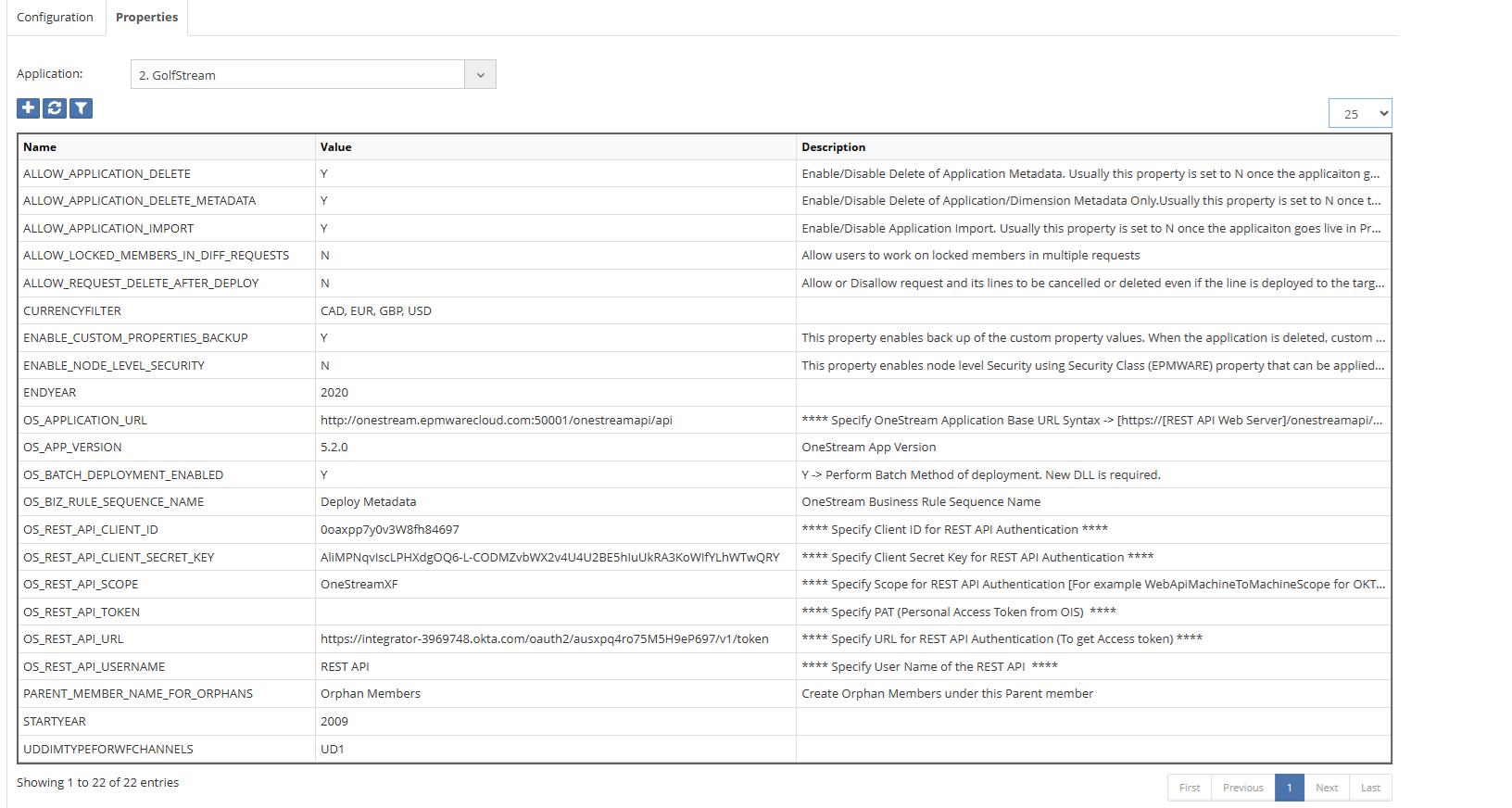

OneStream Properties Configuration OneStream application properties in EPMware

REST API Properties

REST API Properties REST API authentication properties configuration

Property Description Example
OS_REST_API_CLIENT_ID Okta Client ID abc123def456
OS_REST_API_CLIENT_SECRET_KEY Okta Secret ***
OS_REST_API_URL Authentication endpoint https://epmware.okta.com/oauth2/[serverID]/v1/token
OS_REST_API_USERNAME API User REST API

Deployment Properties

Property Description Default
OS_DEPLOY_DM_SEQUENCE DM Sequence name Deploy Metadata
OS_DEPLOY_DM_STEP DM Step name Deploy Metadata
OS_APPLICATION_NAME OneStream app name GolfStream

Import Application Metadata

  1. Click Import icon for OneStream application
  2. Select Manual Import
  3. Browse to ZIP file
  4. Click Import

OneStream Import Dialog Manual import dialog for OneStream application

Part 5: Server Configuration

Install EPMWARE.dll

  1. Login to OneStream application server
  2. Navigate to BusinessRuleAssemblyFolder
  3. Location specified in server config file
  4. Copy EPMWARE.dll to folder
  5. Restart OneStream services if required

DLL Installation Path BusinessRuleAssemblyFolder location for EPMWARE.dll

DLL File

The EPMWARE.dll file is provided by EPMware support. Contact support@epmware.com to obtain the file.

Configure Whitelisting

For cloud deployments: 1. Request whitelisting from support@epmware.com 2. Provide OneStream public IP 3. EPMware provides IP for OneStream whitelist 4. OneStream support completes configuration

Network Requirements

VPN tunnel is NOT required. Whitelisting uses public IP addresses only.

Testing & Validation

Connection Test

  1. EPMware Server Test
    Configuration → Infrastructure → Servers
- Select OneStream server
- Test Connection

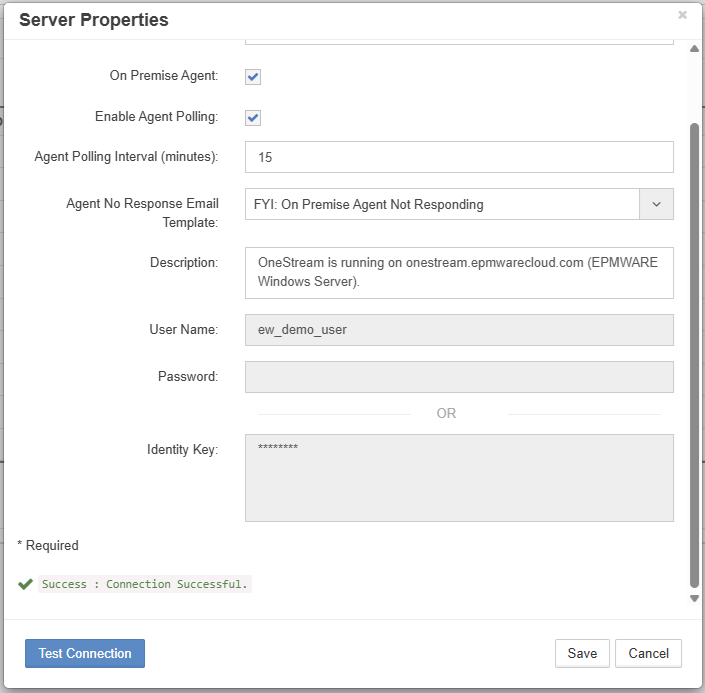

Test Connection Success Successful connection test to OneStream

Import Validation

  1. Review import status
  2. Verify dimension count
  3. Check hierarchy structures
  4. Validate properties

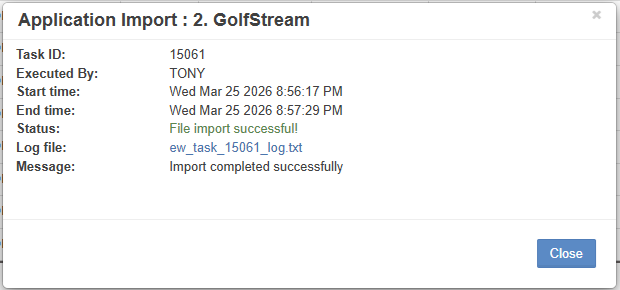

Import Status Report Application import status showing successful completion

Deployment Test

  1. Create test request
  2. Make minimal change
  3. Deploy through workflow
  4. Verify in OneStream

Troubleshooting

Common Issues

Issue Cause Solution
Authentication Failed Invalid credentials Verify Okta/OIS configuration
Business Rule Error Missing DLL Install EPMWARE.dll
Import Timeout Large metadata Increase timeout settings
Deployment Failed Sequence not found Verify DM configuration

Debug Checklist

  • [ ] EPMWARE.dll installed correctly
  • [ ] Business rule compiled without errors
  • [ ] REST API user has admin rights
  • [ ] Authentication properties configured
  • [ ] Data Management sequence created
  • [ ] Whitelisting completed (if cloud)

Log Locations

Component Log Location
OneStream Application Event Log
Business Rule BRApi.ErrorLog entries
EPMware Administration → Services → Logs

Best Practices

Security

  • 🔐 Use dedicated service account
  • 🔑 Rotate API credentials regularly
  • 📝 Enable comprehensive audit logging
  • 🛡️ Apply least privilege principle

Performance

  • ⚡ Schedule deployments off-peak
  • 📦 Batch metadata changes
  • 🎯 Target specific dimensions
  • 📊 Monitor execution times

Maintenance

  • 📋 Document configuration
  • 🔄 Test after OneStream updates
  • 💾 Backup business rules
  • 📚 Keep DLL versions current

Quick Reference

OneStream Properties

Property Category Properties
Authentication OS_REST_API_CLIENT_ID, OS_REST_API_TOKEN
Deployment OS_DEPLOY_DM_SEQUENCE, OS_DEPLOY_DM_STEP
Application OS_APPLICATION_NAME, OS_APPLICATION_TYPE
Connection OS_REST_API_URL, OS_REST_API_USERNAME

Required Files

File Purpose Source
ApplicationProperties.xml Application settings OneStream Extract
WorkflowChannels.xml Workflow configuration OneStream Extract
*_Metadata.xml Dimensions & rules OneStream Extract
Security_Groups.xml Security configuration OneStream Extract
EPMWARE.dll Integration library EPMware Support

Support Resources

EPMware Support

📧 Email: support@epmware.com
📞 Phone: 408-614-0442

OneStream Resources

  • OneStream Community Portal
  • XF MarketPlace
  • OneStream Support

Integration Tip

Always test the integration in a OneStream development environment before configuring production. Create a backup of your OneStream business rules before making changes.
